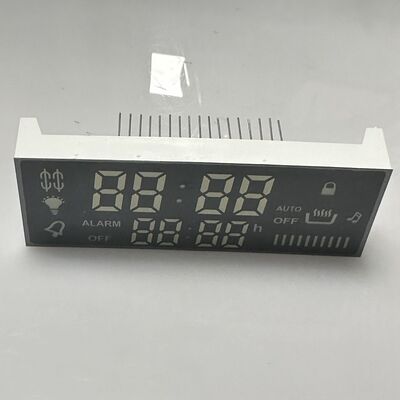

Customized Ultra Bright White 7 Segment LED Display Common Cathode for Gas Cooker Controller

Name: Customized Ultra Bright White 7 Segment LED Display Common Cathode for Gas Cooker Controller
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB3490LWH3S-T8-D
Price: 0.20 USD
Availability: InStock

Markenbezeichnung:	Light Bo
Modellnummer:	LB3490LWH3S-T8-D
MOQ:	1000
Preis:	Negotiate
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	20000 PCs/Tag

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Shenzhen, China

Zertifizierung:

ISO9001&RoHS

Vorteil:

Pünktliche Lieferung

Service:

OEM / ODM akzeptabel

Helligkeit:

Hohe Helligkeit

Anzeigefunktion:

Grafik

Zeichenhöhe:

14,2 mm (0,56")

Eigenschaften:

Stabile Qualität und lange Lebensdauer

Warenzeichen:

LICHT-BO

Anzeigetyp:

7 Segment

Segmentart:

Gemeinsame Kathode

Stift:

Vorwärtsstrom:

12-15mA

Farben ausstrahlen:

Ultrahelles Gelb

Betriebsspannung:

1,8 V bis 3,3 V

Bildschirmwinkel:

120°

Vorteil:

Schnelle Wärmeableitung

Verpackung Informationen:

KARTON

Versorgungsmaterial-Fähigkeit:

20000 PCs/Tag

Hervorheben:

ultra bright white 7 segment LED

common cathode 7 segment display

gas cooker controller LED display

Beschreibung des Produkts

Customized Ultra Bright White 7-Segment LED Display

Common cathode LED display specifically engineered for gas cooker controllers, built-in oven controls, and multifunction cooking timers.

Product Overview

This purpose-built visual solution is designed exclusively for high-heat kitchen environments, operating reliably at temperatures from +105°C to +120°C. The display ensures clear readability for cooking times, heat levels, and status indicators—critical for safe gas cooker operation.

With a customized 90×34×14mm package size, yellow segments on a black surface enhanced by protective film, and ultra bright white illumination (100-120mcd), it maintains visibility in bright kitchen lighting. Common cathode configuration simplifies integration while low power consumption and RoHS/REACH compliance make it an eco-friendly, durable choice.

Product Images

Key Features

Gas Cooker-Optimized Durability

High-temperature resistance: Operates reliably at +105°C to +120°C
Protective film resists oil, grease, and kitchen splatters
Stable performance during vibrations and voltage fluctuations

Superior Visibility for Kitchen Use

Ultra bright white illumination (100-120mcd) cuts through glare
High contrast yellow segments on black background
Wide viewing angle for readability from multiple positions

Customized Design & Easy Integration

Tailored 90×34×14mm package fits standard control panels
Common cathode configuration works with standard driver ICs
Continuous uniform segments eliminate dim spots

Energy Efficiency & Compliance

Low power consumption with optimized forward voltage (2.8-3.2V)
Long lifespan: 50,000+ hours matching appliance service life
RoHS/REACH compliant for global market compatibility

Applications

Gas cooker controllers for cooking times and heat levels
Built-in oven controls for preheat countdowns and temperatures
Multifunction cooking timers for precise cooking
Other high-heat home appliances: air fryers, toasters, induction cooktops

Why Choose This Display for Gas Cookers?

Heat resistance ensures no failure near gas burners or oven heat—critical for safety. Kitchen-proof durability with protective film extends lifespan and simplifies maintenance. User-friendly visibility with high contrast design reduces cooking errors. Customized fit matches standard gas cooker control panels, avoiding design delays. Global market ready with RoHS/REACH compliance.

Product Parameters

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Technical Specifications by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Luminous Intensity	Iv	If=10mA	60		80	mcd

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, ISO 9001:2015 certified company with over 15 years OEM and ODM experience in optoelectronics LED displays. Committed to providing high quality, low cost customized solutions.

Products Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostats, heating and cooling controls.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we accept sample orders and small orders below MOQ.

Q4: Can I get samples for testing?

A: Yes, we provide 5-10 free samples for testing with freight cost borne by customer.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services available. We customize sizes, LED colors and functional icons according to requirements.

Q15: How do you ensure product quality?

A: We are ISO 9001 certified manufacturers with over 20 years experience. We conduct twice 100% testing before shipment.
