| Markenbezeichnung: | LIGHTBO |
| Modellnummer: | LB20561DG1B |
| MOQ: | 1000 |
| Preis: | Negotiate |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsfähigkeit: | 20000 Stück/Tag |
| Item | Specification |
|---|---|

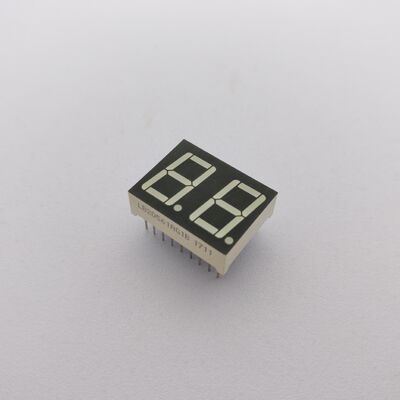

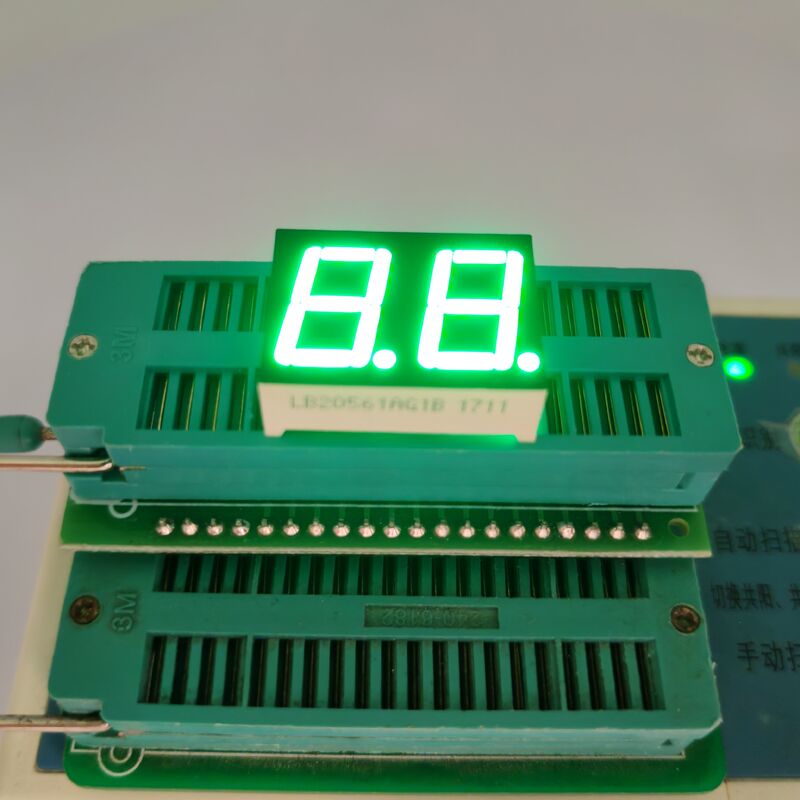

| Product Name | High-Visibility Green 7 Segment LED Display for Electronics Projects |
| Part Number | LB20561DG1B (Custom PN Available) |
| Digit Options | 2 to 6 digits |
| Color Options | White, Blue, Pure Green, Yellow-Green, Orange, etc. |
| Polarity | Common Anode / Common Cathode |
| Lifespan | 80,000 hours |
| Samples & Lead Time | Free samples available (5-7 days; tooling: 15-20 days) |
| Production Lead Time | 15-20 days (adjustable) |
| OEM/ODM & Logo | Fully Supported |
| MOQ | 1,000 PCS (100-500 PCS for initial order) |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) Established in 2006, Shenzhen Guangzhibao Technology Co., Ltd. is a pioneering leader in the research and development, manufacturing, and sales of optoelectronic LED Displays. As an ISO 9001:2015 certified company, we bring over 15 years of unmatched OEM and ODM expertise, solidifying our reputation for excellence in innovation and quality.
LIGHTBO is passionately committed to providing high-quality, cost-effective custom solutions. We empower our clients to significantly reduce expenses while sharpening their competitive advantage in the marketplace.
![]()
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display: Discover the widespread applications across home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, all reflecting our commitment to excellence.7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Experience our products' vast applications across home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems. Each application exemplifies our unwavering dedication to excellence.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
