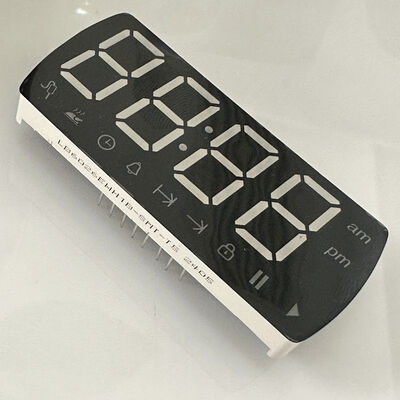

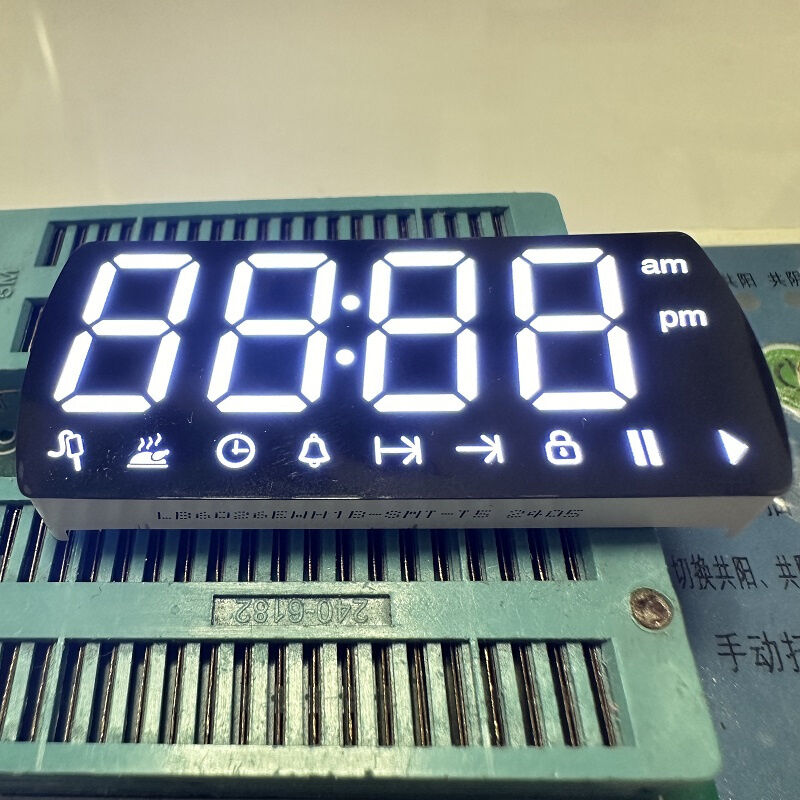

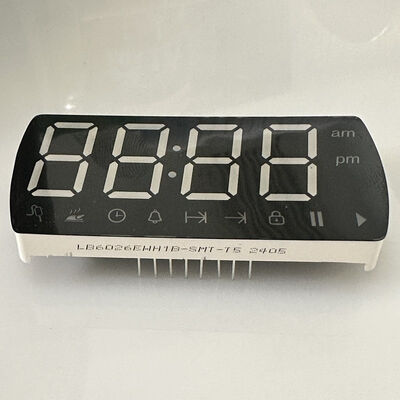

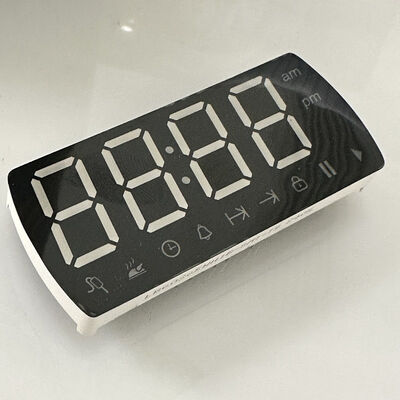

Customized Ultra Bright 4 Digit LED Display for Ovens

Name: Customized Ultra Bright 4 Digit LED Display for Ovens
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB6026EWH1B-SMT-T5
Price: 9.20 USD
Availability: InStock

Markenbezeichnung:	LIGHTBO
Modellnummer:	LB6026EWH1B-SMT-T5
MOQ:	1000
Preis:	Negotiate
Zahlungsbedingungen:	TT, Western Union
Versorgungsfähigkeit:	50000 Stück/Tage

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Shenzhen, China

Zertifizierung:

ISO9001&ROHS

Polarität:

Gemeinsame Anode

Pixel:

10 mm, 6 mm, 8 mm, 2,5 mm, Nr

Bildschirmdimension:

Kundenspezifische Größe, 496 x 496 mm, 40,5 x 16,0 mm, maßgeschneidert, 50 cm lang

Rohrchipfarbe:

Vollfarbig, Rot, Grün, Blau, kundenspezifische Farbe

Verwendung:

Innen, Außen, Halbaußen, Theke, Waschmaschine

Anzeigefunktion:

Video, Grafik, Animation, Bild, Bild

Garantie:

2 Jahre, 3 Jahre, 5 Jahre, 2-3 Jahre, zwei Jahre

Produktname:

P5 Indoor-LED-Anzeige, HQ-CP50-stellige LED-Ziffernanzeige, Countdown-Uhr kaufen, LED-Videoanzeigefe

Helligkeit:

5000 cd/m², 6000 cd/m2, 400-1000 cd/m², hohe Helligkeit, 1800 CD

Lebensspanne:

100.000 Stunden, 100.000 Stunden, 000 Stunden

Modulgröße:

160 x 160 mm, 320 x 160 mm, 288 x 120 mm, 576 x 576 mm, 512 x 512 mm

LED-CHIP:

Epistar, Nation Star, Sanan, Cree + Nichia + Epistar + Opto + Silan

Farbe:

Vollfarbig, 1R1G1B, kundenspezifisch

Schrankgröße:

496x496x62mm, 500mm x 500mm, 512*5120mm, 500*500 mm, kundenspezifisch

Pixelabstand:

6 mm, P3,91 mm, P4,81 mm Miet-LED-Display, 4,2,5 mm

Anwendung:

Außen-/Innenwerbetafel, Innen-, Außenwerbung mit LED, Haushaltsgeräte/Zähler/Taxi, Countdown-Event

Pixeldichte:

27777 Punkte/m2,65536,16000 Punkte/qm

Artikel:

Vollfarb-LED-Anzeige flexibel, Anode 0,56 Zoll kundenspezifische LED-Anzeige, 4-stellige LED-Anzeige

Stromversorgung:

G-Energie, CL, Wechselstrom oder 12 V Gleichstrom, MeanWell oder gleichwertige Marke, MeanWell

Schrankmaterial:

Eisen, Druckgussaluminium, Magnesium und Aluminiumlegierung

Verpackung Informationen:

EPE+Karton

Versorgungsmaterial-Fähigkeit:

50000 Stück/Tage

Beschreibung des Produkts

Customized Ultra Bright 4 Digit LED Display for Ovens

Product Features

Forward voltage (high luminous intensity output)
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Provides excellent reliability in bright ambient light
Stable performance
Long lifetime
Meet RoHS/REACH compliant

Applications

Audio equipment or instrument panels
Home electronic appliances
Numeric displays
Multimedia products
General use for digital indicators, temperature indicators, humidity indicators, process indicators, and more

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

Q6: What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

Yes, we offer discounts for bulk orders.

Q10: How much are shipping charges?

Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Do you offer custom design services?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
