Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Markenbezeichnung:	LIGHTBO
Modellnummer:	LB4722FBH1B-T6
MOQ:	1000
Preis:	Negotiate
Zahlungsbedingungen:	TT, Western Union
Versorgungsfähigkeit:	50000 Stück/Tage

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Shenzhen, China

Zertifizierung:

ISO9001&ROHS

Polarität:

Gemeinsame Kathode

Transportpaket:

EPE+Karton

LED-Farbe:

Rot

Standort:

Shenzhen

Zeichenhöhe:

9,92 mm (0,38 Zoll)

Eingangsspannung:

1,7 ~ 2,6 V

Betriebstemperatur:

-40°C bis +85°C

Dimension:

49*15*8 mm

Energieverbrauch:

Geringe Leistung

Umrissmaß:

30.1*16*7mm

IP-Bewertung:

IP54

Digitale Höhe:

20.32 mm (0,80 Zoll)

Ziffernhöhe:

0.23 Zoll

Paket:

TAUCHEN

Typ:

Standard

Besonderheit:

Zweistellige, schnelle Wärmeableitung

Verwendung:

Innen-, Außen-, Innen-/Außen-, Büro-, Außen- und Innenräume

Rohrchipfarbe:

Vollfarbig, Rot, Grün, Weiß, Blau

Bildschirmdimension:

Kundenspezifische Größe: 12,7 x 7,6 x 7 mm, 50,4 x 19,0 x 8,1 mm, 113 x 29 mm, 28,8 x 40,8 mm

Anzeigefunktion:

Grafik, Animation, Video, Ziffern 0-9, Temperatur

Pixel:

10 mm, 7 mm, 25 mm, 8,0, 10,20 mm

Farbe:

Blau, Gelb, Grün, Rot, Weiß

Helligkeit:

Automatische Dimmung durch Lichtsensor, 4000,7000 cd/m², 5000–6500 mcd, hohe Helligkeit

Garantie:

2 Jahre, 1-jährig

Produktname:

Hot Video HD P6 7-Segment-LED-Anzeigebildschirm, LED-7-Segment-LED-Anzeige, Chestnuter-LED-Videoanze

Anwendung:

Elektronische Bürogeräte, Haushaltsgeräte usw., Außenwerbung, Innenwerbung

Name:

LED-Preisstation, Benzinanzeige, kleine 7-Segment-SMD-LED-Anzeige mit 3 Ziffern, 0,2 Zoll, 4-stellig

Betriebstemperatur:

-35 ~ +85 ℃, -20 +85, -40 ~ 80 ℃, -45-80 ℃

Lebensspanne:

100.000 Stunden, 10.000 Stunden, mehr als 50.000 Stunden

Stromspannung:

DC12V, 90~120V/220~240V (basierend auf den Kundenbedürfnissen)

Farbe ausstrahlen:

Blau, Gelb, Grün, Weiß, Rot

Ziffernhöhe:

0,2 Zoll, 1,5, 1,2, 0,38, 0,5

LED-Chip:

Epistar,InGan,AlGanlp

OEM:

Verpackung Informationen:

EPE+Karton

Versorgungsmaterial-Fähigkeit:

50000 Stück/Tage

Hervorheben:

blue 3 digit 7 segment LED display

7 segment LED display for refrigeration

refrigeration control panel LED display

Beschreibung des Produkts

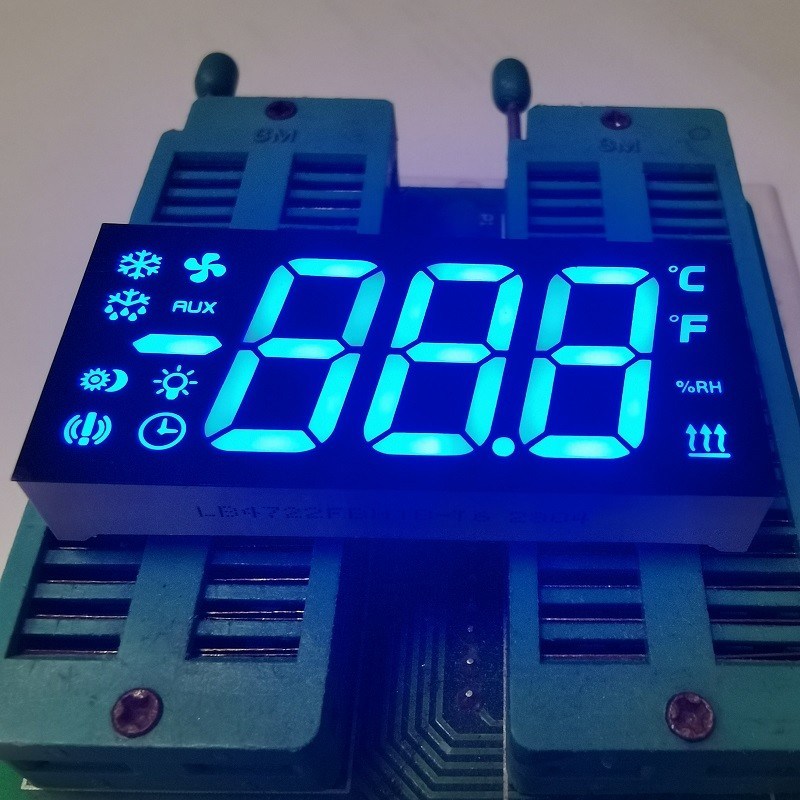

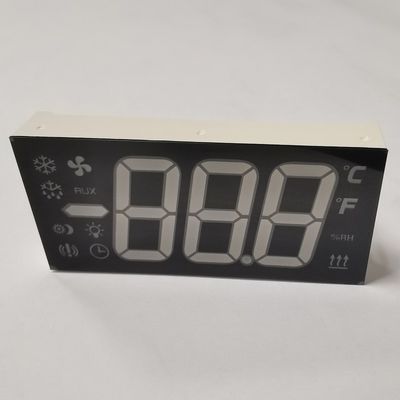

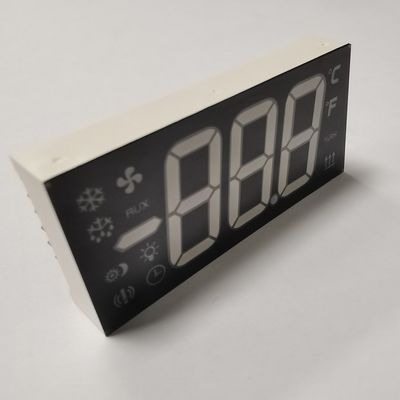

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Product Overview

High-quality blue 3-digit 7-segment LED display specifically designed for refrigeration control panels and temperature monitoring applications.

Package dimension: 10×13×7mm
Character height: 9.9mm (0.39 inch)
Polarity: Common cathode
Color: Super bright blue
Face color: Black/Grey
Wavelength: 630-635nm
Luminous intensity: 50-60mcd/dice
Forward voltage: 1.8-2.2V/led
Available colors: red, blue, yellow green, pure green, white, amber, orange, and yellow

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control systems.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pieces. We can also accept sample orders and small orders with quantities less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust our production plan to complete within 7-10 days.

Q6: What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment method details are negotiable.

Q7: Can you quote FOB prices?

Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

Please provide your email address or contact us directly through our website for our catalog and price list.

Q9: Can I negotiate the prices?

Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

Shipping charges depend on shipment size and shipping method. We will provide charges based on your requirements.

Q11: Can you do custom design products?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can also choose other shipping methods that work best for you.

Q15: How do you ensure product quality?

We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
